Collaborating on Code

+
Zach Sailer

View on Github

About me

What is our goal today?

To successfully work on a single project with many people.

a.k.a. to collaborate

Bioinformatics in the wild . . .

write bad code/analysis,

have it fail you,

headache,

learn and improve.

Bioinformatics in the wild . . . (2)

work with a team,

see other's ideas and mistakes,

learn and improve.

What do we need?

Version Control

Collaborative Platform

What is version control?

a system that records changes to a file or set of files over time so that you can recall specific versions later

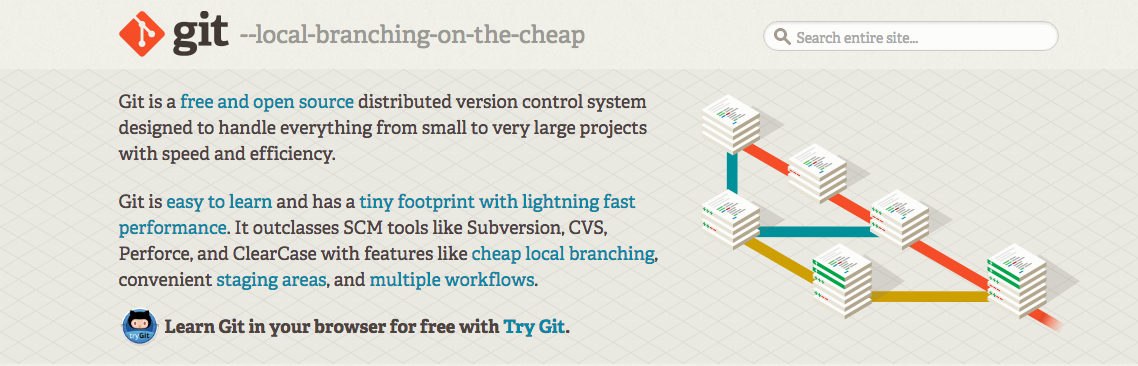

Meet Git

A relevant XKCD comic

Git Vocabulary

  • Repository

    a project folder tracked by git.

  • Branch

    a separate line of the repository with own tracking/history.

  • Commit

    save the state of the current line of development for a repository.

  • Merge

    combine two lines of development within a repository.

Example of Repository

Think of this as a folder in your filesystem

Example of Repository (2)

Initialize the repo

user@machine:$ mkdir myproject
user@machine:$ cd myproject
user@machine:myproject$ git init
Initialized empty Git repository in myproject/.git/

user@machine:myproject$ ls -a
.  ..  .git

Example of Repository (3)

Add a file to your repo

user@machine:myproject$ echo "Git/Github tutorial from UO Bioinformatics program" > README.md
user@machine:myproject$ git status

# On branch master
#
# Initial commit
#
# Untracked files:
#   (use "git add ..." to include in what will be committed)
#
#	README.md
nothing added to commit but untracked files present (use "git add" to track)

Example of Repository (4)

Add a file to your repo

user@machine:myproject$ git add README.md
user@machine:myproject$ git status

# On branch master
#
# Initial commit
#
# Changes to be committed:
#   (use "git rm --cached ..." to unstage)
#
#	new file:   README.md
#

Example of Commit

Changes that are tracked.

Example of Commit (2)


user@machine:myproject$ git commit


1 Adding readme to project.
2 # Please enter the commit message for your changes. Lines starting
3 # with '#' will be ignored, and an empty message aborts the commit.
4 # On branch master
5 #
6 # Initial commit
7 #
8 # Changes to be committed:
9 #   (use "git rm --cached ..." to unstage)
10 #
11 #   new file:   README.md
12 #

Boom! Achievement unlocked!

Local git repository


user@machine:myproject$ git log

commit 0000000somecommitnumber00000000000000
Author: Zsailer
Date:   Thu Jul 7 10:41:05 2016 -0700

    Adding readme to project

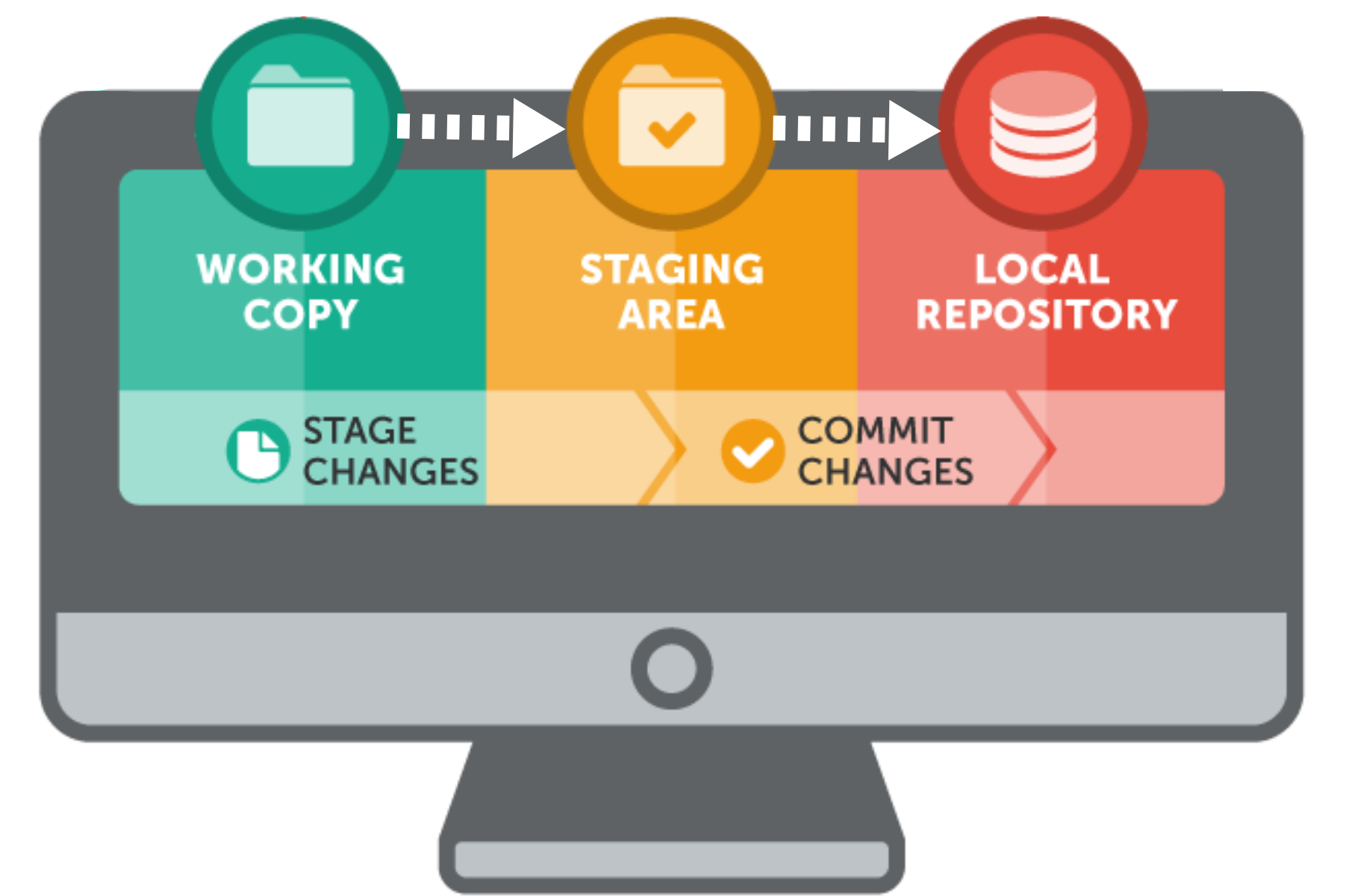

local git workflow

Example of Branch

Work on a new feature using a separate line of development

Example of Branch (2)

List current branches.


user@machine:myproject$ git branch
* master

Create a branch named feature


user@machine:myproject$ git branch feature
user@machine:myproject$ git branch
feature
* master

Switch to that branch.


user@machine:myproject$ git checkout feature
Switched to branch 'feature'

Exercise 1: add to the your feature branch

  1. Create a new file to this branch.
  2. Add it to your git workspace
  3. Commit it to your project history.

Hint: Repeat the same steps as we did with the master branch.

Exercise 2: add a new (and different) file to your master branch

  1. checkout your master branch.
  2. Create a new file.
  3. add it to your git workspace
  4. commit it to your project history.

Note: the file you added to the feature branch is not in your repository.

Example of a Merge

Merge two lines of development

Example of a Merge

Make sure you are on the master branch


user@machine:myproject$ git branch
feature
* master

Merge feature branch into master branch.


user@machine:myproject$ git merge feature
Merge made by recursive.
 test.txt |    1 +
 1 files changed, 1 insertions(+), 0 deletions(-)
 create mode 100644 test.txt

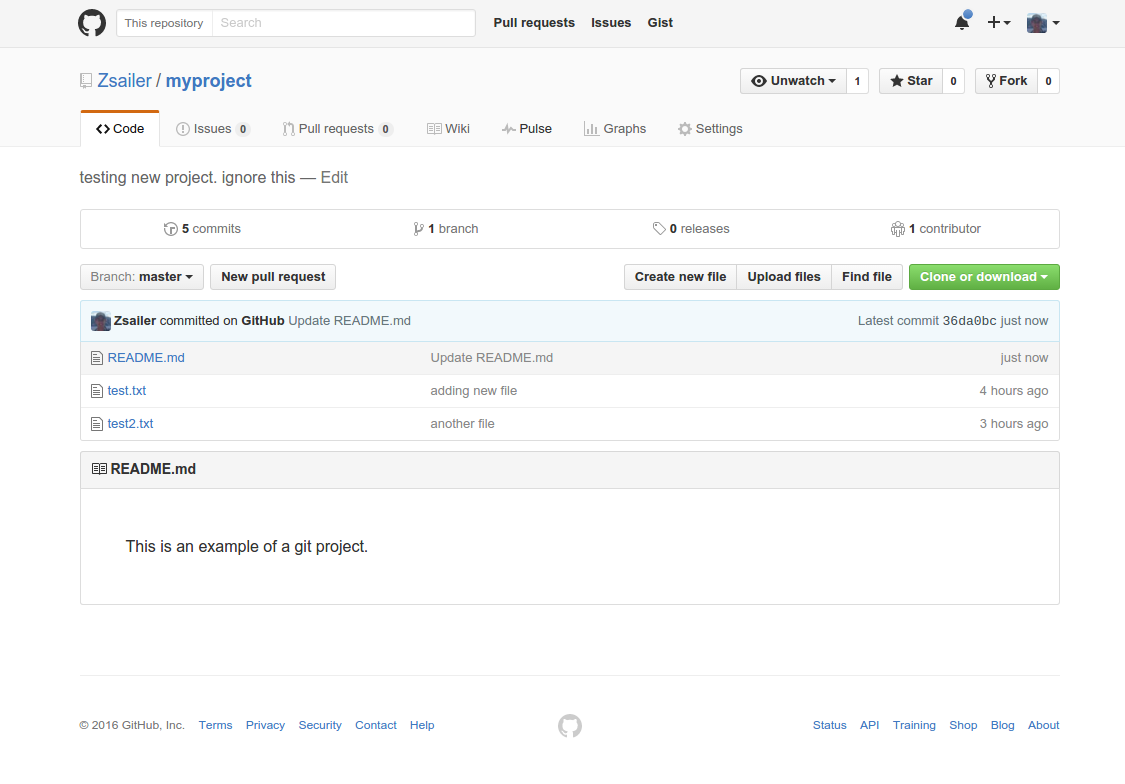

Make your project public.

Remote Repository

  • A mirror of a local repository hosted on a remote server
  • Allows for many developers working on one repository.

Let me introduce you to Github

What is Github?

Remote host for Git projects.

A home for software collaboration.

Let's create a Github account

Pick a professional username.

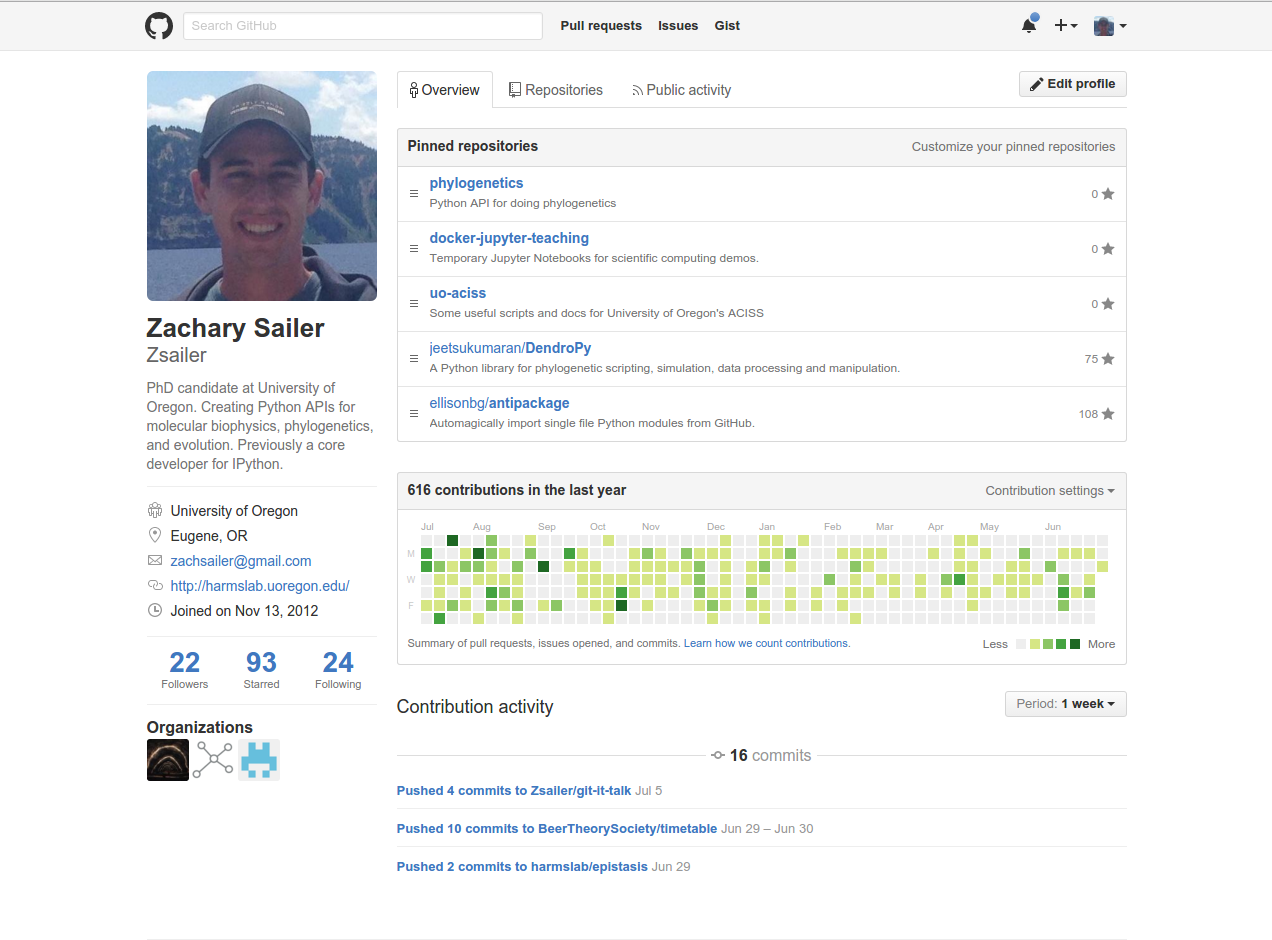

The basics of a Github profile

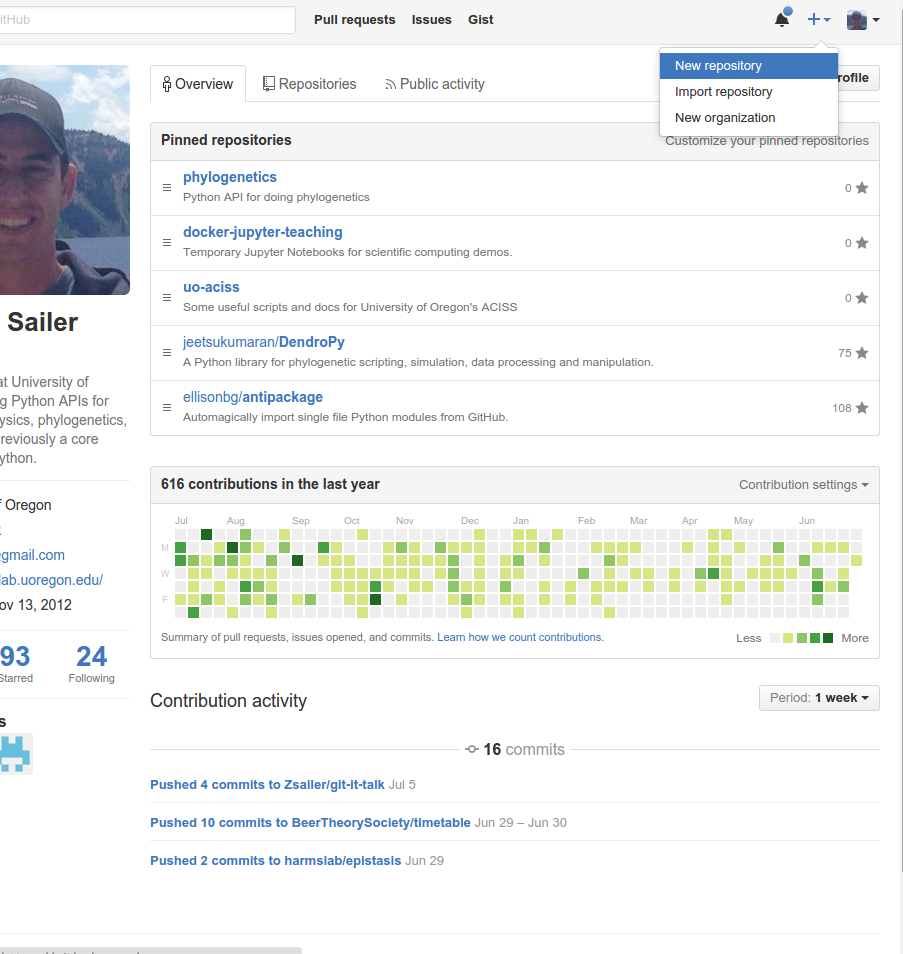

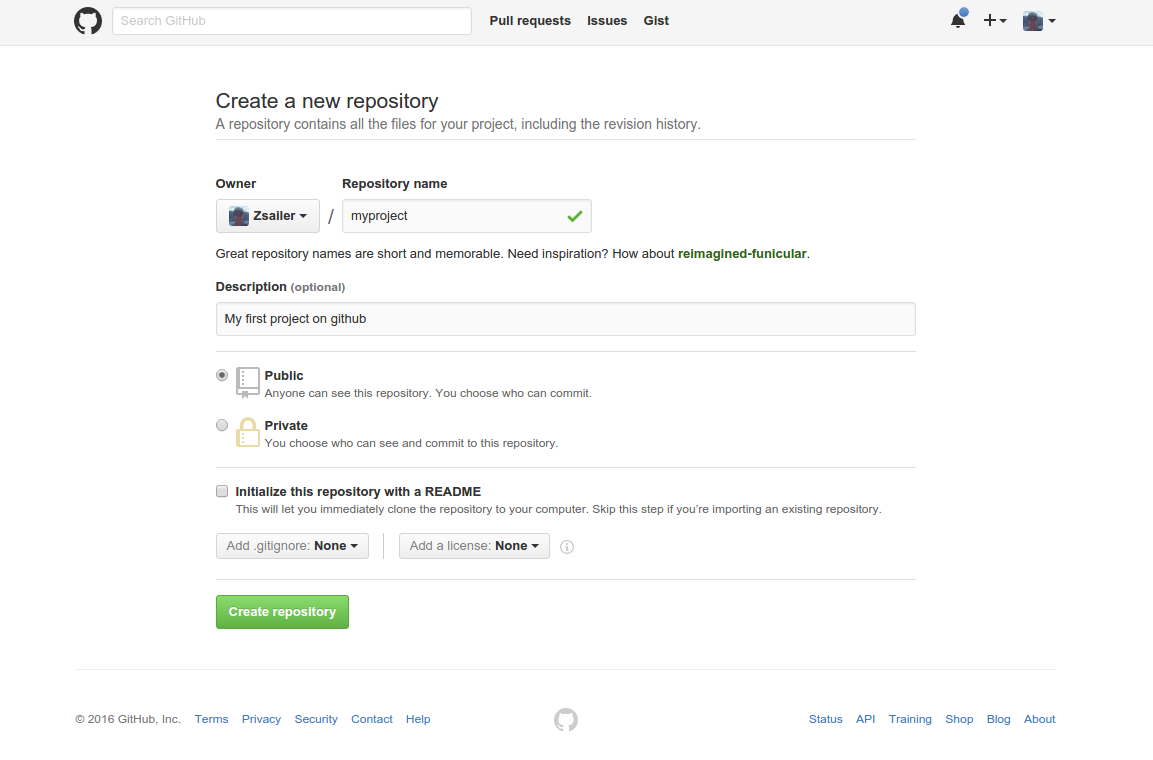

Create a new repository

Create a new repository (2)

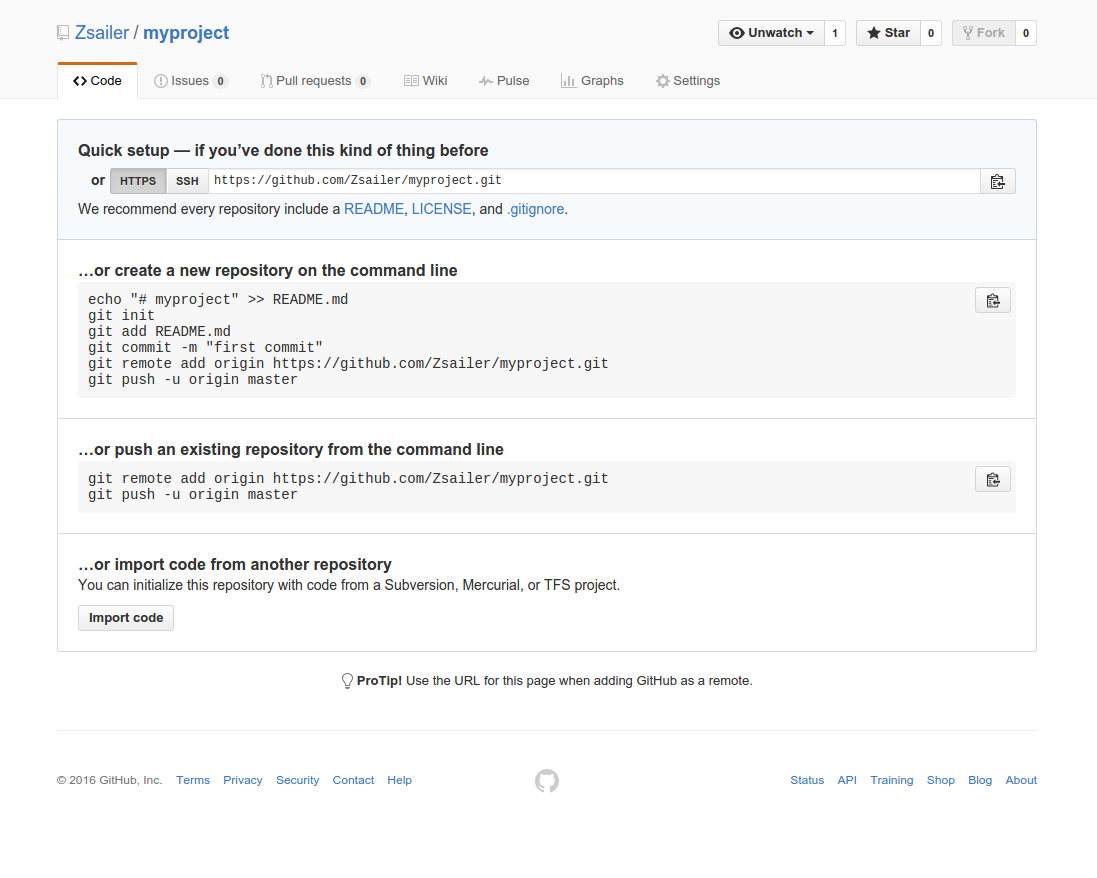

Create a new repository (3)

Point local repo to remote repo

Add the remote repository with nickname "origin".

user@machine:myproject$ git remote add origin https://github.com/Zsailer/myproject

Now let's see what happened.

user@machine:myproject$ git remote -v
origin	https://github.com/Zsailer/myproject (fetch)
origin	https://github.com/Zsailer/myproject (push)

Git vocabulary (2)

  • Pull:

    download changes from a remote branch and merge with local branch.

  • Fetch:

    download/track changes from remote branch, but don't merge with local branch.

  • Push:

    upload changes from local branch to remote branch

  • Clone:

    create a new local repo from an existing remote repo.

Push myproject to Github!

i.e. push your local "master" branch to "origin".

user@machine:myproject$ git push origin master

Counting objects: 11, done.
Delta compression using up to 12 threads.
Compressing objects: 100% (7/7), done.
Writing objects: 100% (11/11), 865 bytes, done.
Total 11 (delta 3), reused 0 (delta 0)
To git@github.com:Zsailer/myproject.git
 * [new branch]      master -> master

Congratulations!

You now have a project on Github!

Now, for the good stuff!

Finally, we're ready to learn how to

collaborate on (or contribute to) a single project

Some more vocabulary...

Fork :

start a new line of development from a remote repo (like branching).

Pull-Request

merge a forked repo into another remote repo (like merging.)

Let's begin

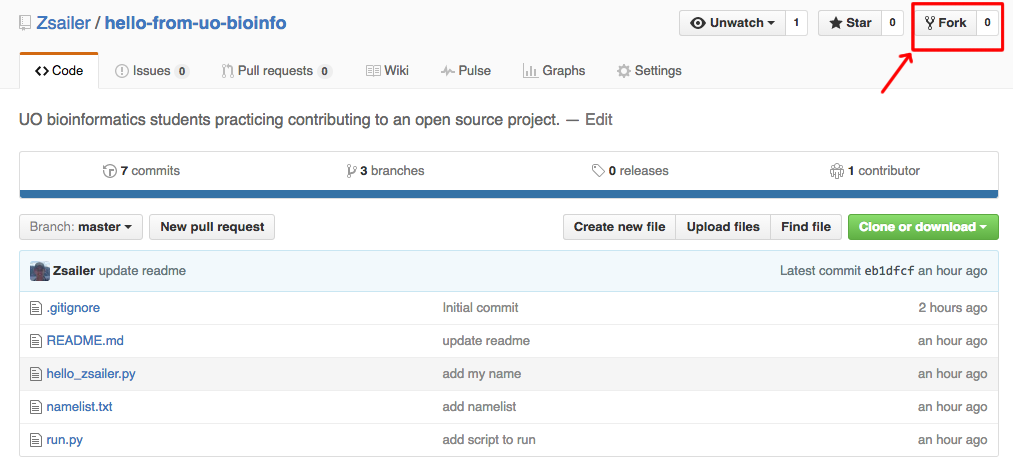

Fork a project on Github

Go to github.com/Zsailer/hello-from-uo-bioinfo

and click fork.

Clone the fork locally.

user@machine:$ git clone https://github.com/username/hello-from-uo-bioinfo

Cloning into 'hello-from-uo-bioinfo'...
remote: Counting objects: 19, done.
remote: Compressing objects: 100% (16/16), done.
remote: Total 19 (delta 6), reused 9 (delta 1), pack-reused 0
Unpacking objects: 100% (19/19), done.
Checking connectivity... done.

Add a link to the remote repo as well (named it "upstream")

user@machine:$ git remote add upstream https://github.com/Zsailer/hello-from-uo-bioinfo

Branch, add file, and commit.

  1. Name your branch "addme" and switch to it.
  2. Add a file named "hello_{github username}.py" (i.e. hello_zsailer.py).
  3. Commit this change.

Push local branch to Github.

user@machine:$ git push origin addme

Counting objects: 2, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (2/2), done.
Writing objects: 100% (2/2), 228 bytes | 0 bytes/s, done.
Total 2 (delta 1), reused 0 (delta 0)

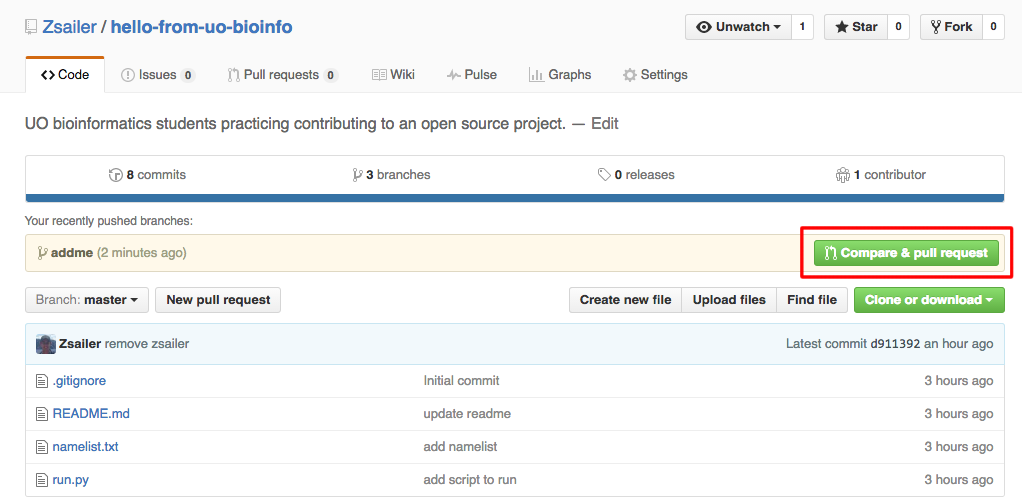

Submit a pull request

Go to your fork on Github and click pull request.

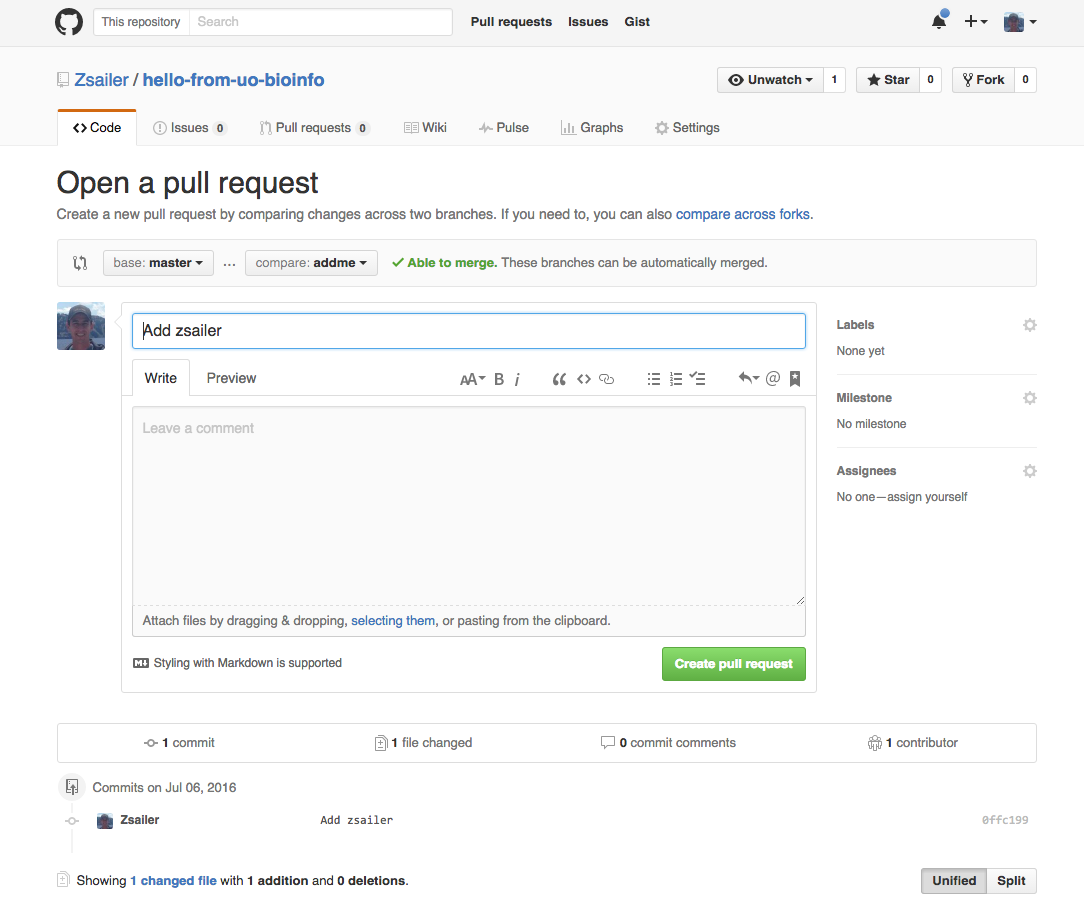

Submit a pull request (2)

add a description and create pull request

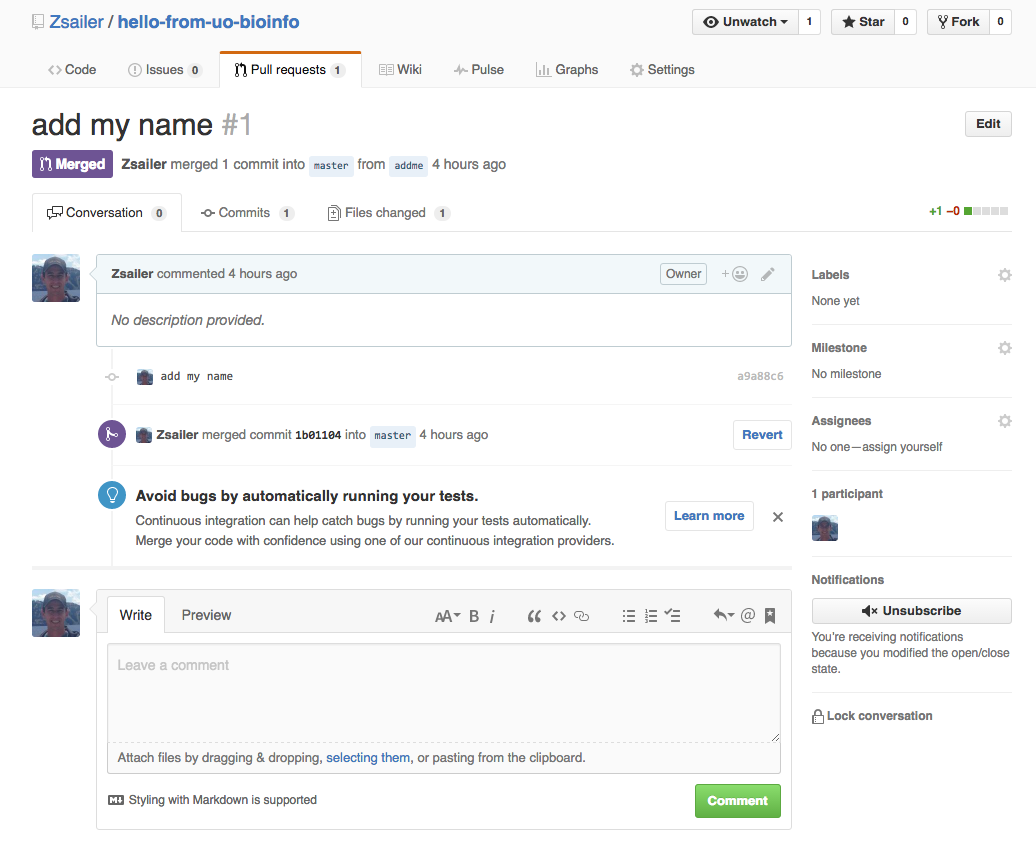

Merged!

Pull changes and update remote branches.

Pull from upstream

user@machine:$ git pull upstream master

and push the updates to all branches.

user@machine:$ git push --all origin

Congrats! You've contributed!

Why not Dropbox?

Merge conflicts!

Handle conflict

Rebase your branch.

Push the updated branch

What other things can you do on Github?

  • Host private repositorys, large datasets, and websites for free
  • Find open source software for everything.
  • Get help and engage with the best coders in the world.
  • Form organizations and teams
  • Integrate with Slack
  • Explore and contribute to major organizations (i.e. Nasa, OpenTreeOfLife, Google, Twitter, FiveThirtyEight, etc.)
  • Clone interesting datasets from these organizations.

Thanks!

Zsailer

@zrsailer

More (and probably better) tutorials

  • Atlassian has some useful tutorials.
  • Github also has a list of helpful tools.
